COMMERCIAL SUN 2000 – 36KTL-M3

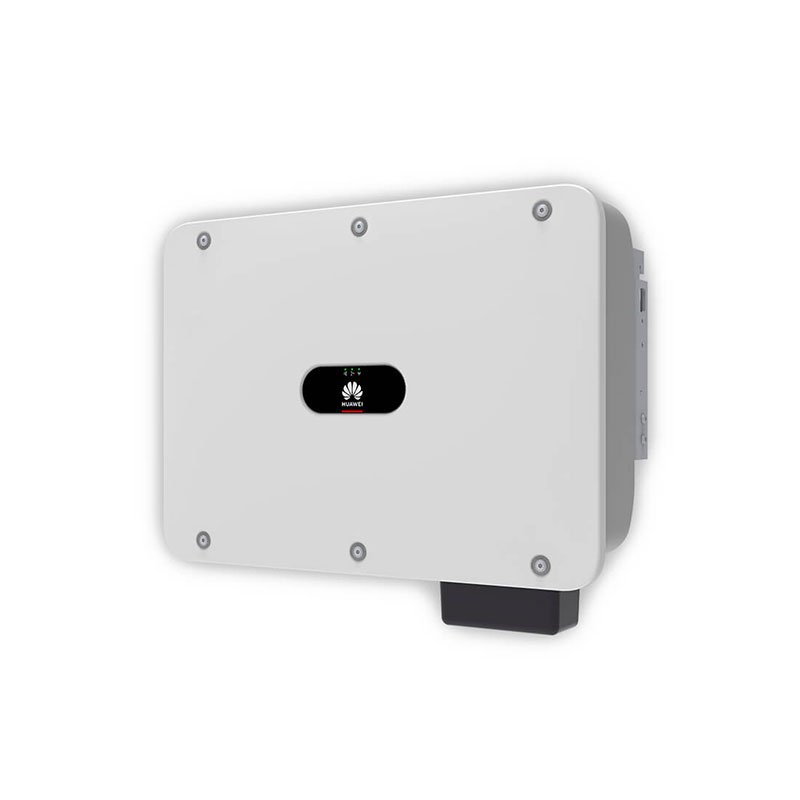

Solar inverter Huawei SUN2000-36KTL-M3 36KW Three-phase 36kW

The Huawei SUN2000-36KTL-M3 is a powerful inverter that performs an indispensable task in the PV system: It converts the direct current into alternating current. With its high efficiency, it is the right solution for demanding system operators. Behind the dimensions of 640 x 530x 270 mm, the Huawei SUN2000-36KTL-M3 inverter offers a lot of state-of-the-art technical finesse. The weight is 43 kg – including the mounting plate. As with all Huawei Solar products, installation is simple and commissioning can be completed in just a few minutes using the app. RS485 communication is provided for data exchange with the Smart Logger and Smart Power Meter.A big advantage of the Huawei SUN2000-36KTL-M3 is the factory-supplied overvoltage protection (type 2 for AC and DC) as well as four independent MPP trackers are innovative details. In addition, the module operates pleasantly quietly, because the cooling takes place without a fan by natural convection. The maximum power of the Huawei SUN2000-36KTL-M3 inverter is 40,000 watts. The MPPT operating voltage range is from 200 V to 1,000 volts. With a maximum efficiency of 98.7 percent and a European efficiency of 98.4 percent, the device achieves tremendous efficiency.

Huawei inverters Smart PV Controller – Most versatile inverter yet (Three Phase):

Max DC voltage: 1100 V
Max AC apparent power: 33,000 VA/ 40,000 VA/ 44,000 VA
4 MPPTs for versatile adaptions to different layouts
8 strings intelligent monitoring and fast trouble-shooting
Max. efficiency 98.7%, European efficiency 98.4%
Up to 30% More Energy by Optimizing Each Module Performance
2 Strings per MPPT, More Energy Yields
PID Recovery Built-in to Secure Better Module Performance
AI Powered Active Arcing Protection
C&I Tailored Enhanced Active Arcing Protection
Pinpoint Arc Fault Positioning for Easier Troubleshooting
0V Module-level Voltage Shutdown, Touch Safe
< 40 sec Module Auto-Mapping
No Fuse or Other Quick-wear Parts, Inverter Touch Free
Natural Cooling Verified by Telecom & Solar Application
One Smart Dongle Supports up to 10 Devices
Online Smart I-V Curve Diagnosis, Module Touch Free

Additional information
Weight 43 kg
Dimensions 64.0 × 53.0 × 27.0 cm
Product Category on-grid inverters, Solar Inverters, SOLAR PHOTOVOLTAIC (PV)
Brand Huawei
Rating 36 kW

Technical data:
Model SUN2000-36KTL-M3
MPPT Operating Voltage Range (DC) 200 V – 1000 V
Max. input voltage (DC) 600 V
Start-up voltage (DC) 200 V
Max. input current per MPPT (DC) 26 A
Number of MPP trackers (DC) 4
Rated output power (AC) 36000 W
Nominal Output Voltage | Rated Grid Frequenc (AC) 230 V/400 V/480V, 3W/N+PE | 50 Hz/60 Hz
Max. output current (AC) 58.0 A
Max. Efficiency 98.70 %
Comunication RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional)
Dimensions 640x530x270 mm | 43 kg

Data sheet & Downloads
Data Sheet Huawei SUN2000-36KTL-M3
